Sturdy flat roofed canopy suitable for leadwork or felt. We currently make two standard sizes of this canopy available with a choice of brackets which will suit most applications. In addition, the brackets can easily be moved closer to each other to suit a smaller doorway.
Choice of Brackets 'London'
The flat roof canopies have a choice of brackets
Type A "London" shown below, which are available with the following canopies
FLA100/40(A) 100cm between brackets, Total width 126cm
FLA130/40(A) 130cm between brackets, Total width 158cm
Choice of brackets 'Blenheim'
The flat roof canopies have a choice of brackets
Type B "Blenheim" which are available with the following canopies
FLA100/40(B) 100cm between brackets, Total width 126cm
FLA130/40(B) 130cm between brackets, Total width 158cm
'Blenheim bracket' type B

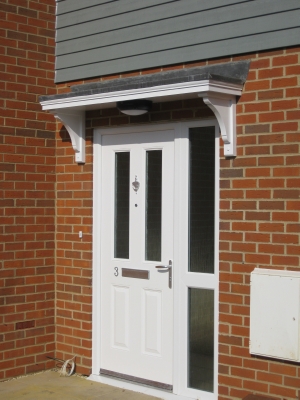

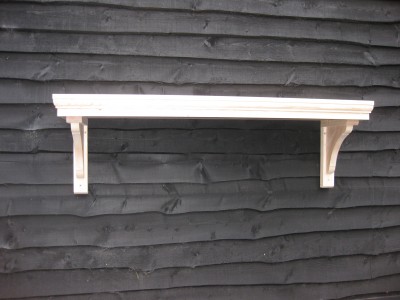

Flat roof canopies
Both Blenheim style brackets and London style brackets can be supplied with the flat roof canopies. These can be made to sizes to suit larger doorways. Please enquire for details 07528 687498 or Paul@timberdoorcanopies.com

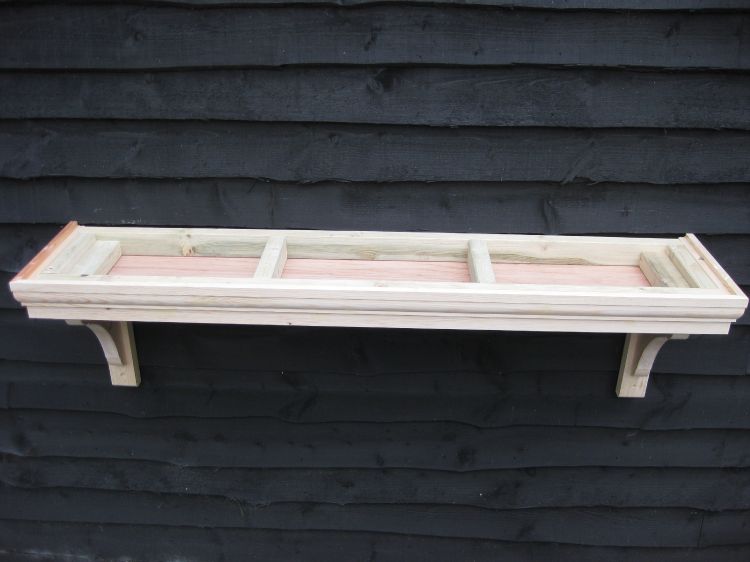

Door Canopy_flat roof construction detail

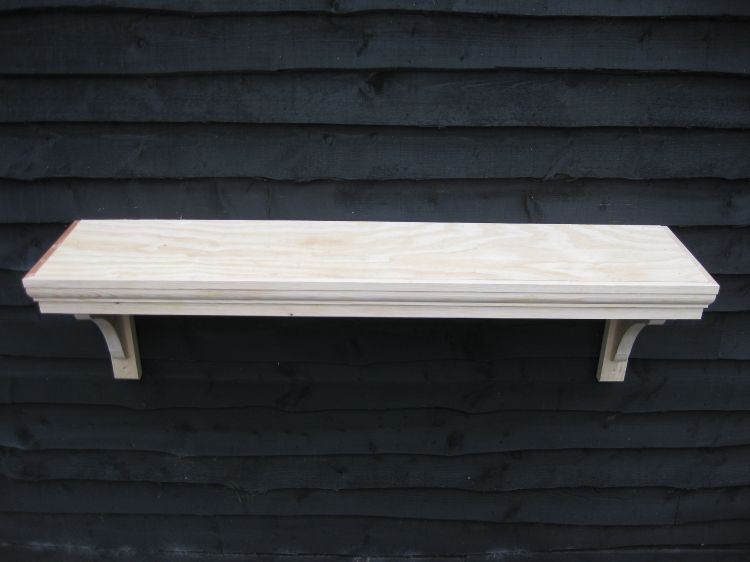

Flat roof canopy_Overview detail

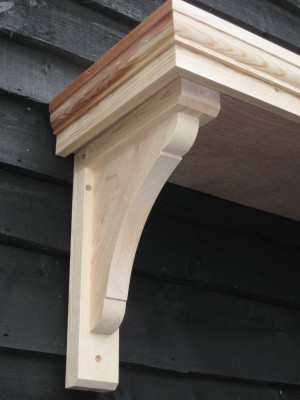

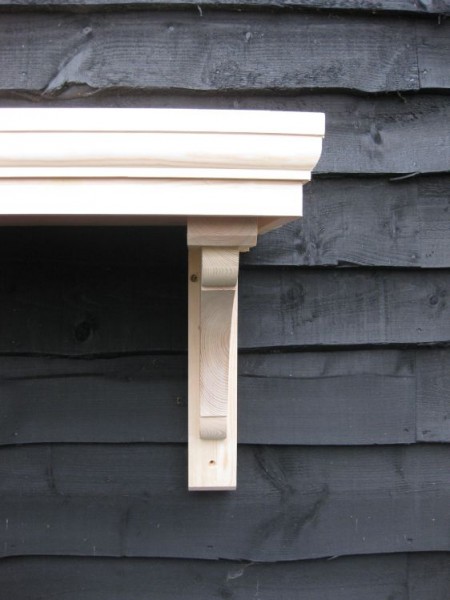

Leaded flat roof_Bracket detail

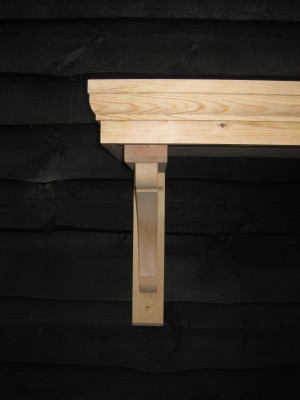

Flat roof_timber bracket detail

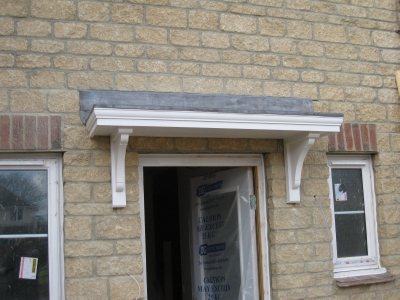

Timber flat roof canopy suitable for lead work

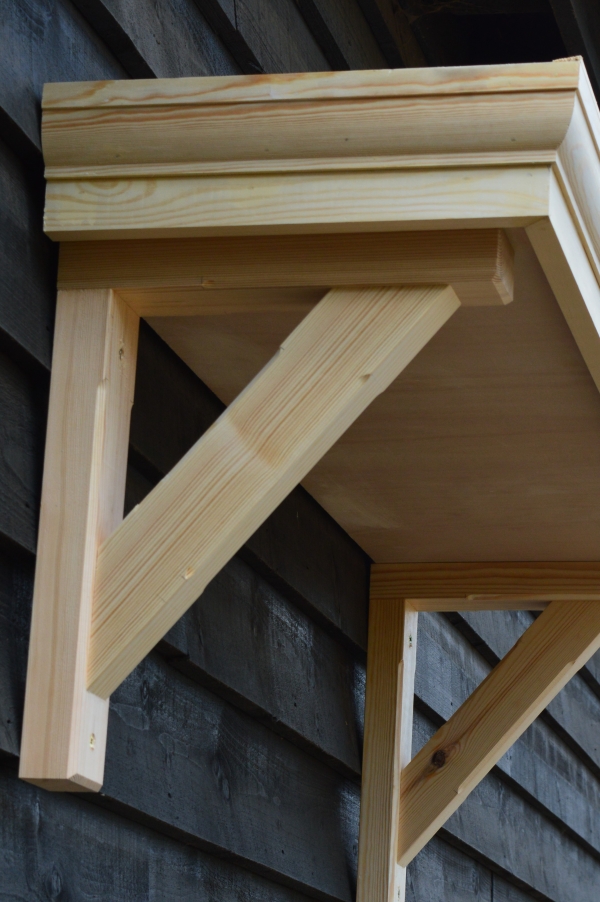

Bracket detail_Bleheim door canopy
Overall hieght 49cm
Overall projection 40cm
Construction as follows:
Internal frame - ex 75mm x 50mm tanalised softwood soffit - 9mm far eastern wbp plywood Lid - 12.5mm wbp shuttering
Brackets, Fascia and moulding - Redwood 5ths
These are flat roofed canopies intended for lead work (not supplied) They are supplied untreated except for the internal framework which is tanalised.
The canopies consists of one pair of brackets and one flat roof section. The lid is supplied loose to allow for fixing to the wall. This canopy is completly flat with no fall. There is a very small section of timber (anti-drip fillet) to be fixed to the front edge of the canopy to encourage sitting water to drip off the ends of the canopy and not the front. They are supplied with all the fixings necessary for installation. The installation is very easy and full fitting instructions are included.
