'Fleur de Lys' Cottage style canopies

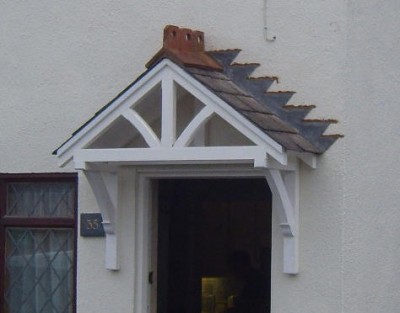

The "fleur de lys" range of cottage canopies has proven to be very popular .The single door canopy is supplied with trusses assembled. The larger canopies are supplied in kit form.

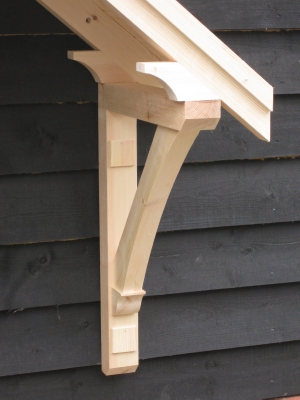

The curved braces are constructed with a stopped chamfer detail to all sides. The canopy is supplied with tongue and grooved boarding which covers the rafters, so when veiwed from the inside has a beautiful featured finish. The components of the canopy are made from ex 75mm x 50mm nom. PSE. The canopy can be painted or stained.
Available in the following sizes
Fleur de Lys canopies for large openings

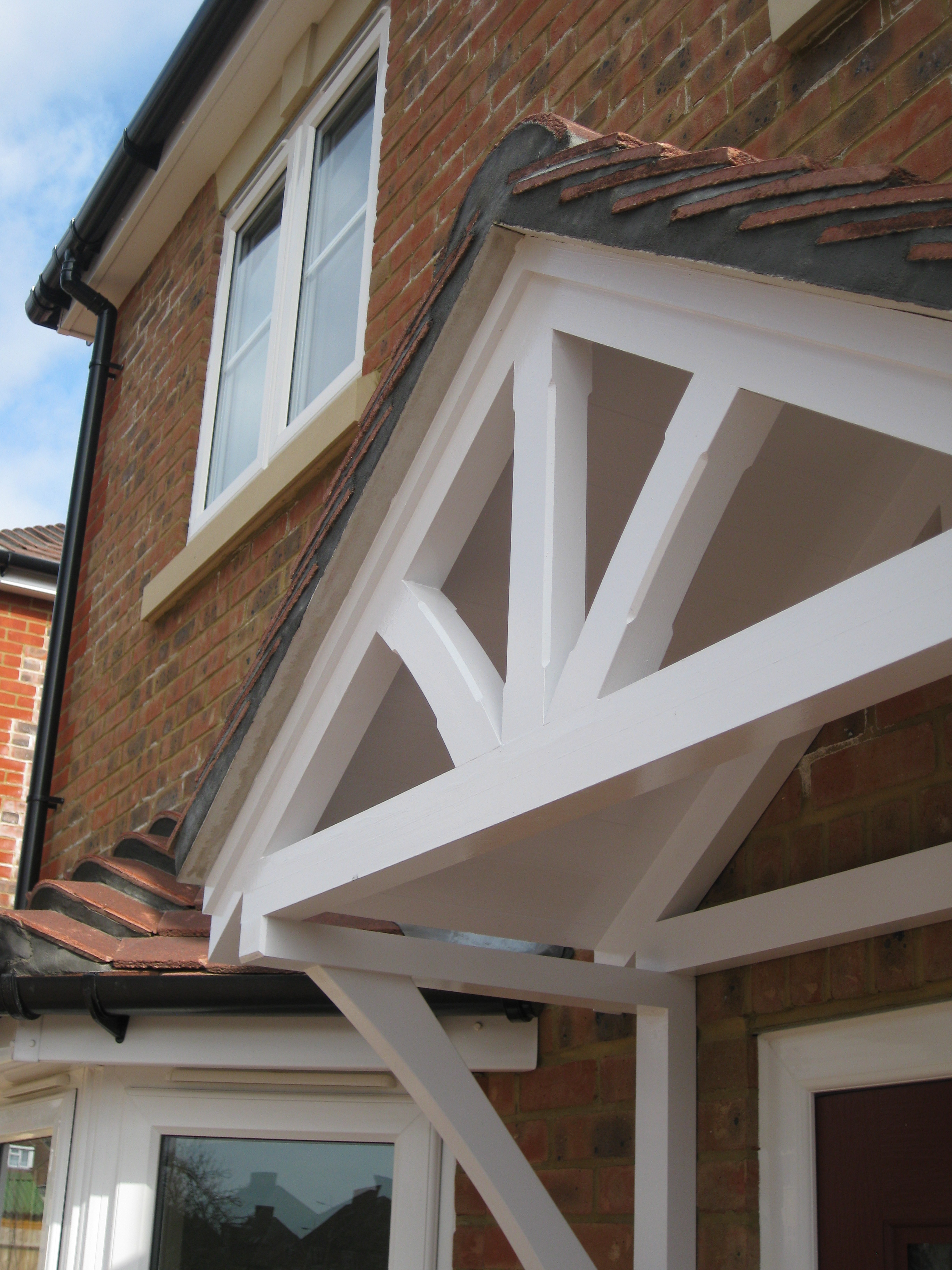

With this design of canopy, we have produced a wider, more heavy duty canopy supplied with heavy duty "wentworth brackets" to support the extra weight. The photographs below show the 200cm base rail fleur de lys with the heavy duty brackets.
All the canopies are completly open to modification and can be made deeper, wider, shallower or steeper. If you are not sure what you require. Please contact us for advice.
These are made to order items. Please contact with requirements
FDL180/50HD 166cm between brackets 50cm deep 200cm overall width
FDL180/60HD 166cm between brackets 60cm deep 200cm overall width
FDL200/50HD 186cm between brackets 50cm deep 220cm overall width
FDL200/60HD 186cm between brackets 60cm deep 220cm overall width
